1. Unless otherwise specified, all the data above are from internal laboratory tests. If there is any discrepancy between the actual use data and the above data, the actual use data shall prevail.
2. GMS is only available on our Android devices and not supported on dual-system devices.
Modular Design
10" Customer Display (Optional Tap on Glass function)
USB Customer Display Supported for Advertising
* Shown with the secondary display of T3 PRO / T3 Family.
15.6"
Thin Bezel FHD Screen
Aluminum Body
Fingerprint ID* Supported to Unlock D3 PRO
*This feature is optional
Strong Performance 4GB RAM+64GB ROM
Cables Concealed
Aluminum Body
Modular Design
10" Customer Display (Optional Tap on Glass function)
USB Customer Display Supported for Advertising
15.6"
Thin Bezel FHD Screen
Strong Performance 4GB RAM+64GB ROM
Cables Concealed
Fingerprint ID* Supported to Unlock D3 PRO
*This feature is optional
Minimalist and durable, as all our 3rd Gen
Terminals.
15.6"Thin Bezel
FHD Screen
FHD Screen
81%Screen-to-
body ratio
body ratio
Its aluminum body
blends beauty and utility.
The deliberately trimmed stand and base
offer you a neat way to manage cables and also present a stylish design.
More powerful, not just in performance.
User experience,
made even smoother.
made even smoother.
Qualcomm platform
Android 13
4GB RAM+64GB ROM
60% stronger performance
Android 13
4GB RAM+64GB ROM
60% stronger performance
Extendable modules designed
for your growing business.

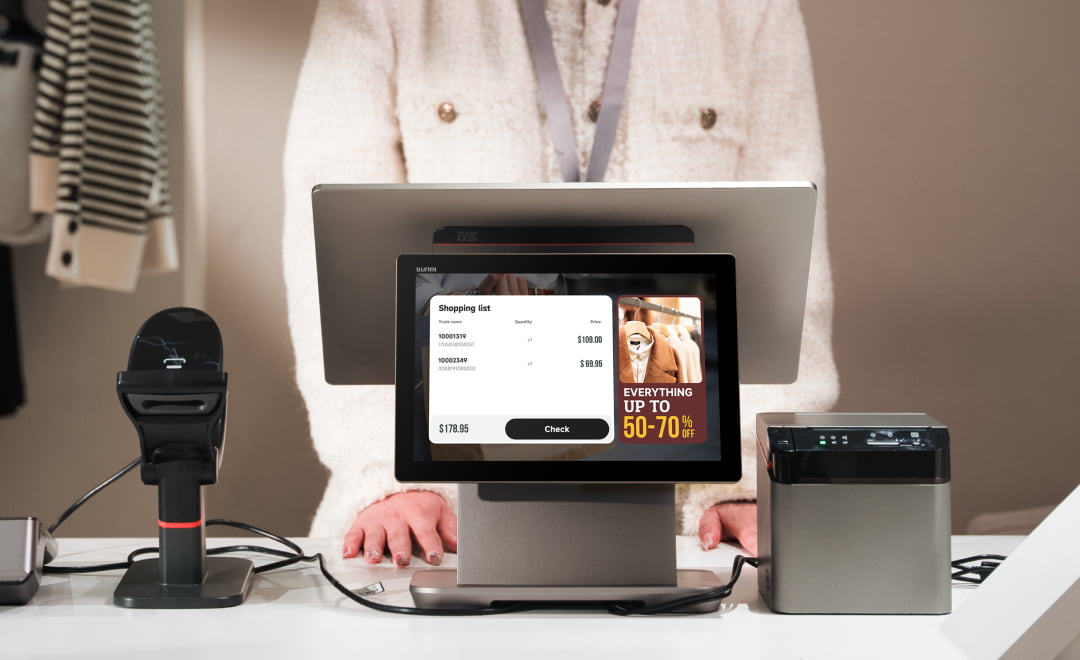

10" customer display (Option with NFC Tap on Glass to support SoftPOS) .
Plug-and-play, no assembly required.
Connect a secondary display with a USB cable and offer the best interaction experience to your customers.
* Shown with the secondary display of T3 PRO / T3 Family.
D3 PRO Tech SpecsSupports and Downloads
Product ModelF3510
OSAndroid OS
(based on Android 13)
*Support Android Version Upgrade
ProcessorQualcomm hexa-core,
up to 2.4GHz
Memory4GB RAM+64GB ROM
Display15.6" FHD 1920*1080,
10-point capacitive touch
screen
Speaker1*3W
NetworkLAN 1000M
Wi-Fi2.4GHz & 5GHz
IEEE 802.11 a/b/g/n/ac
supported
BluetoothBT 5.0
BLE supported
Button1*Power button (Lock
screen; Fingerprint
recognition optional)
Power AdapterInput: AC 100~240V/1.5A
Output: DC 24V/1.5A/36W
External Memory1*MicroSD (TF card)
Up to 1TB supported
Ports1*USB typeA 3.0 port
2*USB typeA 2.0 port
1*RJ11 serial port
1*RJ12 cash drawer port
1*RJ45 LAN port
1*audio jack
1*power port
1*USB typeC 2.0 port
1*MicroUSB debug port
WeightD3 PRO: 4.5kg
10.1" separate monitor:
0.88kg
EnvironmentOperating temperature:
0°C~40°C
Storage temperature:
-20°C～60°C
Indicator LightBlue (Power)
Accessories10.1" separate monitor, HD
1280*800, Capacitive
multitouch display
Dimensions (L*W*H)380mm*195mm*310mm
